Heat Insulator (Industrial use)

Product Characteristics / Insulation Material of HIS: HIS Series (HIS-100,200)
Eco-friendly insulation using organic/inorganic Binder
and Superheated Ceramic materials; - Applying conduction, convection, radiation and reflection and heat transfer principles
① Spray coating allows the micro-particle structure to perform at least
85% heat-blocking effects.
② Each ceramic particle holding the air makes the heat transfer very slow.
③ Low heat transfer coefficient of the gas significantly reduces
the thermal conductivity of the surface,
④ Simultaneously prevents corrosion and minimizing heat movement of the flow coater

Excellent constructability

• Very good working with Spray construction

• Simple construction and repair possible for complex structures that are difficult to work on
Eco-friendly organic/inorganic insulation

•Environmentally friendly insulation using organic/inorganic materials

•Waterproof and chemical resistant

•No wastes

Comparison of Existing Insulation Materials

HIS (Heat Insulation Spray)

Category	Existing insulation	Heat Insulation Spray (HIS-100,200)
Insulation performance	• 50~200mm • Differences depending on materials and construction methods • Organic products has poor heat resistance • Thickness is basically more than 50mm	• 5~20mm • Keeping insulation and waterproof at the same time with a thin product • Excellent heat resistant. Approx. 1000℃ • Thickness of within 10mm
Thermal conductivity	0.034 ~ 0.055w/m.K	0.050~0.051w/m.K
Constructability	• Local construction possible • Partial construction is difficult • Restriction on shape or form	• Partial and local construction is free with Spray construction • Hope pipe available during operation of facility • No restrictions on shape or form
Maintenance	• Re-construction after removal • High maintenance cos	• Simple maintenance with spray overlay • Low repair cost
Environmental factors	• Wastes such as rock, glass fiber, urethane, Styrofoam • Harmful gases generated during fire	• No waste due to the use of eco-friendly materials • No harmful gases generated during fire • Heat resistant and chemically resistant

Physical Properties / Heat insulation of HIS: HIS Series (HIS-100,200)
Eco-friendly insulator using organic/inorganic Binder and Superheated Ceramic materials; •Color: White; •Binder: Soluble acrylic; •Applied temperature: 0℃∼185℃ (Max. temperature: 200℃); •Storage temperature: 5℃∼40℃; •Adhesion Strength: 1~1.3N/mm; •Density: 0.5~0.7g/cm³; •Viscosity: 5,000~13,000cPs; •pH : 7~8

Comparison of characteristics and functions of HIS Series / HIS (Heat Insulation Spray)

	Existing Insulator	Heat Insulation Spray (HIS)
Plumbing
building insulation

Construction surface temperature	HIS-100: 5~500℃ (Construction possible during facility operation) HIS-200: 200℃
Insulation effect	Thermal conductivity HIS-100: 0.051w/m.K, HIS-200: 0.050w/m.K Outstanding insulation and energy reduction
Insulation application	Various application for metals, non-metals, concrete, wood, PVC, PP, PE, FRP glass
Non-flammable	Up to 1,000℃ (HIS-100)
Constructability	Easy to construct with Spray method on places that are difficult to work
Maintenance and Reinforcement	Existing insulation coatings added to top of construction

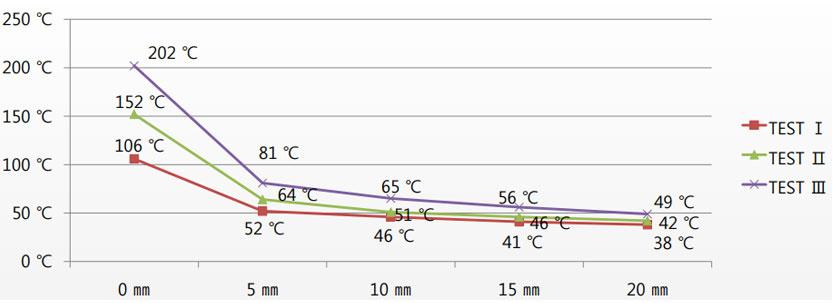

HIS-200 Performance TEST / HIS (Heat Insulation Spray)

HMeasurement of temperature variation according to the applied thickness of HIS Products

Category	0mm	5mm	10mm	15mm	20mm
TEST Ⅰ	106 ℃	52 ℃	46 ℃	41 ℃	38 ℃
TEST Ⅱ	152 ℃	64 ℃	51 ℃	46 ℃	42 ℃
TEST Ⅲ	202 ℃	81 ℃	65 ℃	56 ℃	49 ℃

HIS-100
PAIL : 10Kg SET
HIS-200
PAIL : 18 LITER(11Kg)
DRUM : 180 LITER(110Kg)
packaging based on Client’s request

1PAIL Construction Area

Thickness	1mm	2mm	3mm	4mm	5mm
㎡	18	9	6	4.5	3.6
